There is always a better way to add power to your devices then the conventional way. Power over ethernet (PoE) is better way to power your lighting, speakers, cameras, fixtures and much more than conventional wiring. Since ethernet is consider low voltage, no conduits are required for installation.

Power comes directly from a (a) POE switch which also can also carry data. This means only one source of power can supply power up to 40 to 80 devices (recommend maximum of 50 devices per switch).

Power is sent from the PoE switch to (b) nodes that splits each zone into 4 ethernet connections. Each (c) ethernet line can directly connect to PoE receptacle device or fixture.

Since these unit use sustainable design, we are proposing to use less energy than a conventional building. For this reason, we do not need complete roof of solar panels and battery packs. One can also do a quick solar/battery power needs for their uses on https://gpelectric.com/calculator/Please note each calculation should be divided for each section (56’x13.5’).

All ventilation fans and floor/knee mounted receptables should have GFI connections.

Please download the drawings and specs here

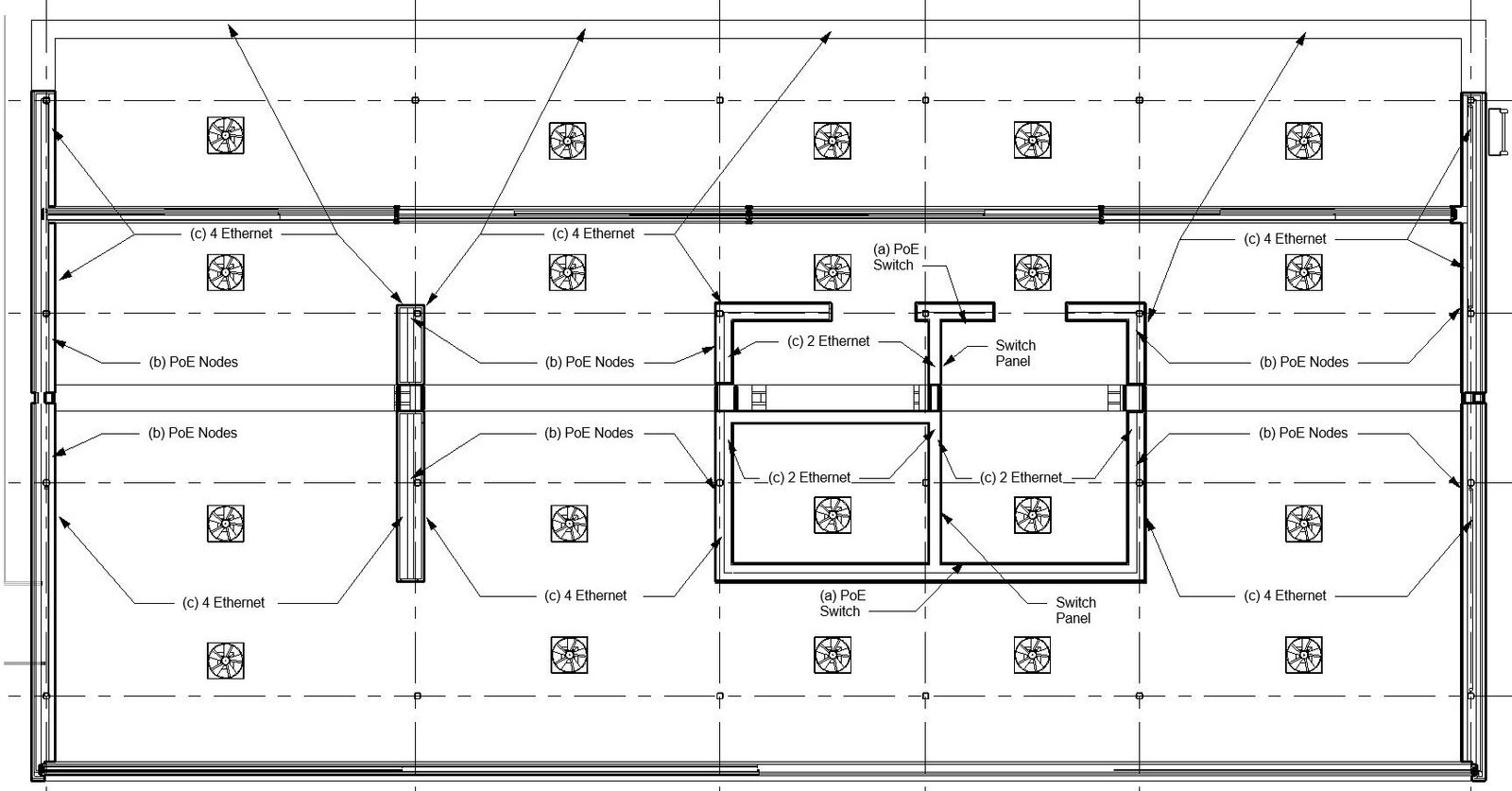

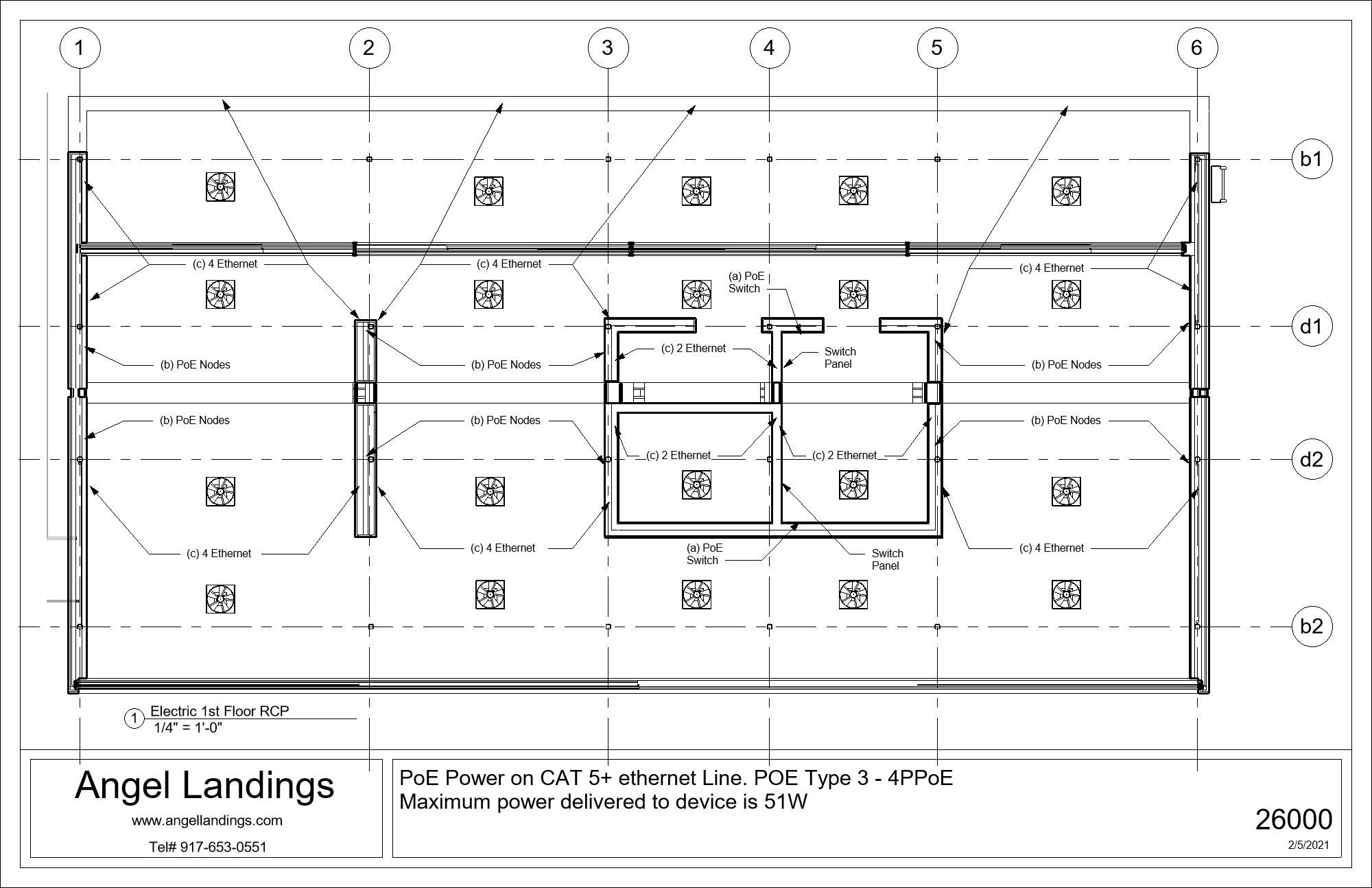

PoE power plan

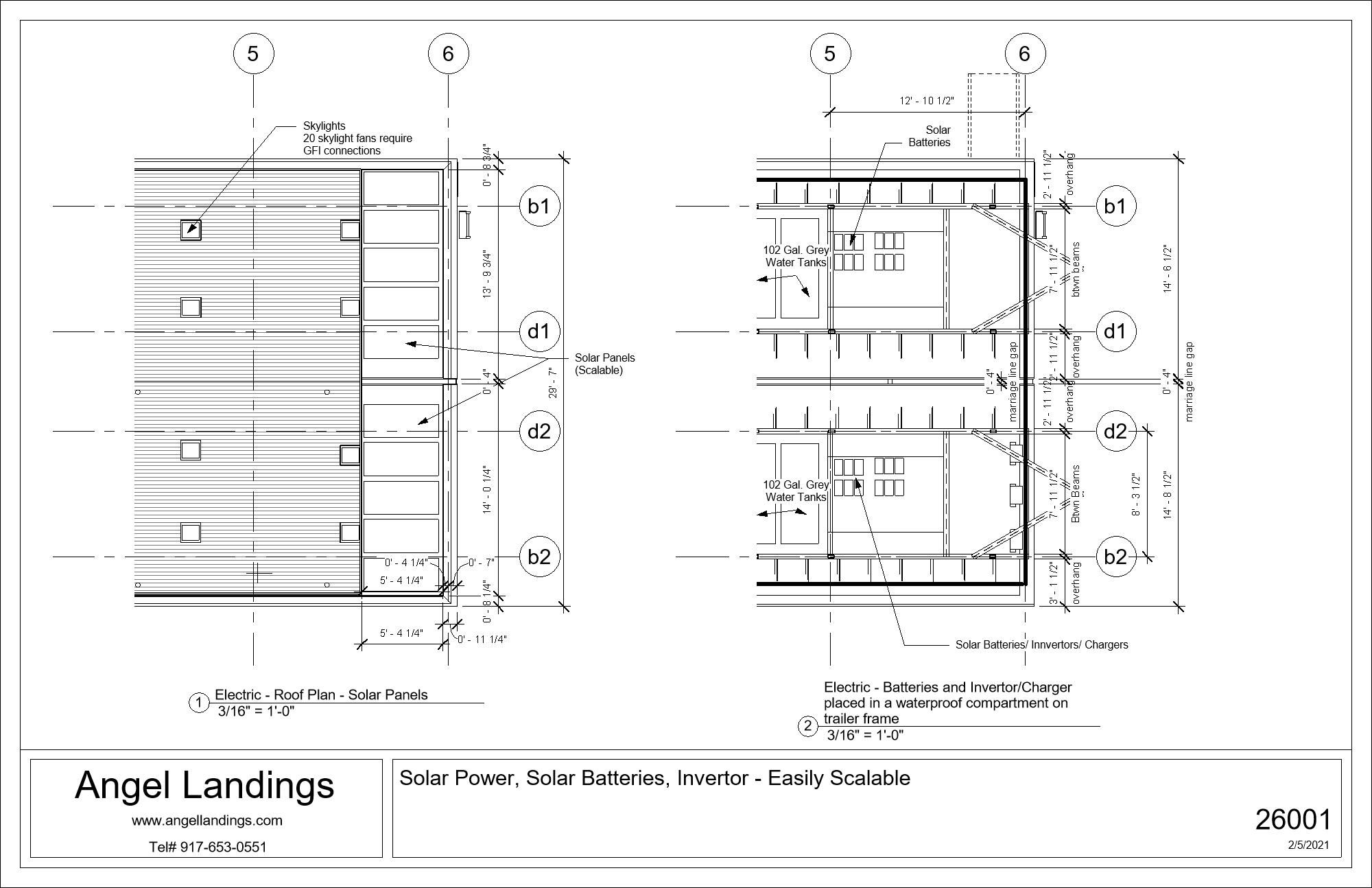

Solar Panels and Batterries layout

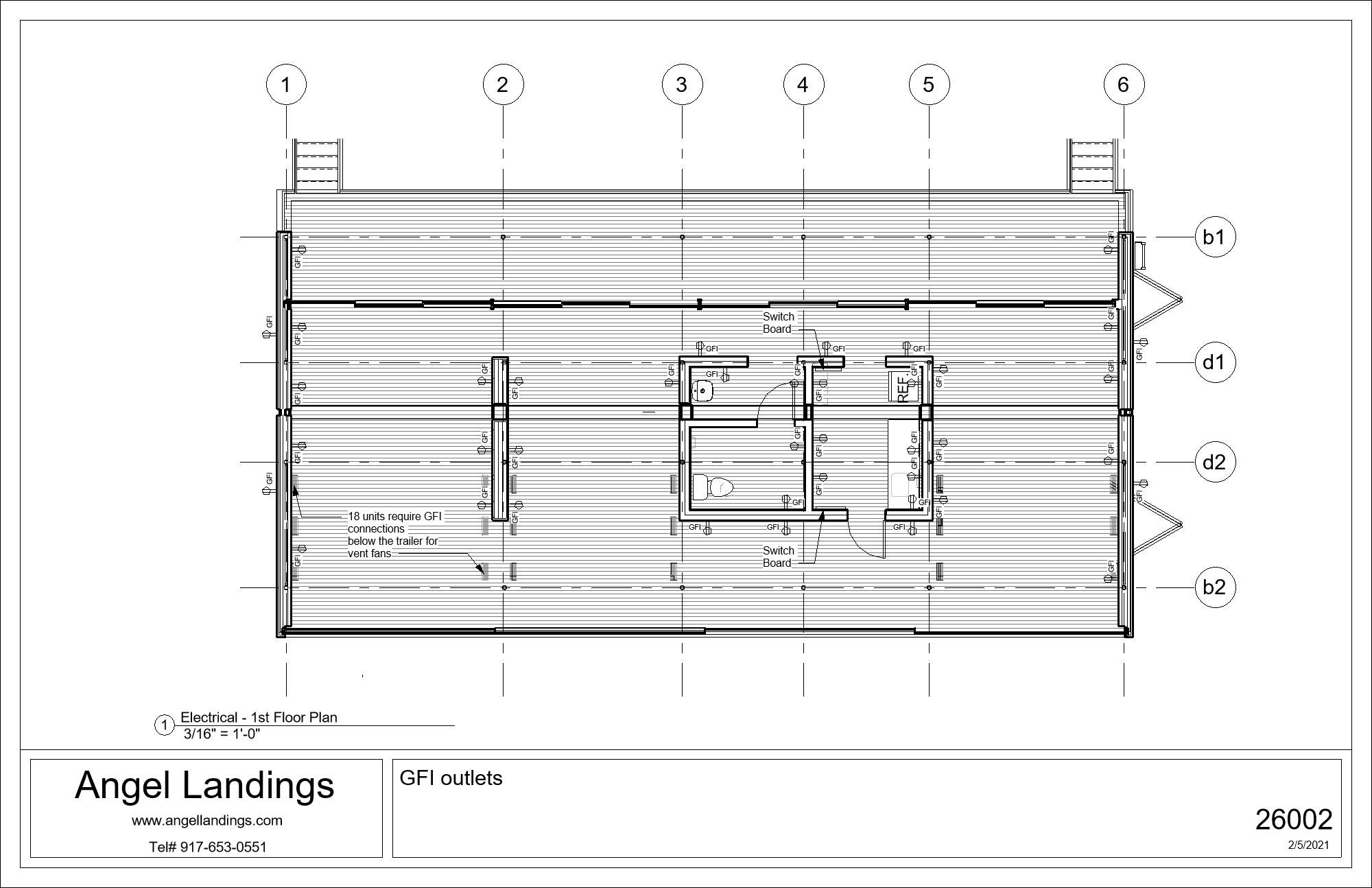

GFI outlets
